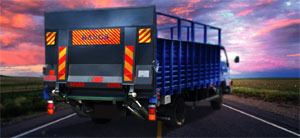

HYDRAULIC LOADING / UNLOADING PLATFORM :

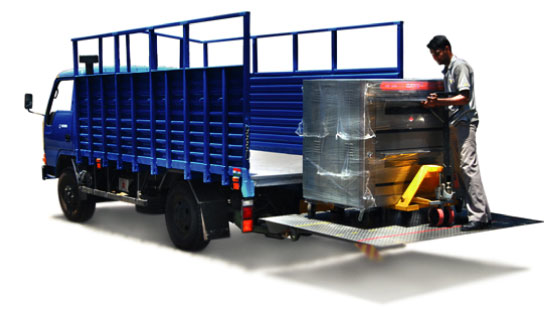

Bang's Hydraulic Loading / Unloading Platform is specially designed for special purpose vans and light / medium trucks in logistic transportation field.



This text will be replaced


  Download Broucher

      Capacity 1500 kg

Advantages
Maximum daily delivery trips possible
Minimum Labour and resources required
Minimum maintenance required
Zero damage to goods
Technical Specifications

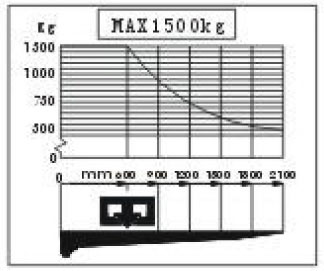

Center gravity of the load:600 mm
Standard width of the Platform : 2100 mm
Standard Length of the platform : 1800 mm
Electrical Specifications
Motor voltage : 12 Vdc Power :2 kw
Rotation speed: 2600r/min
Pump Displacement : 2.5ml/r
Voltage :12V
Current :200A
General Specifications
High Quality imported powerpack component
Steel platform (Aluminium platform available, at extra cost)
2 single acting lift cylinder and 2 tilt cylinder
Automatic Mechanical Leveling
Low maintenance bushes fitted to all pivot points
Mechanical chain lock to prevent opening of platform accidently

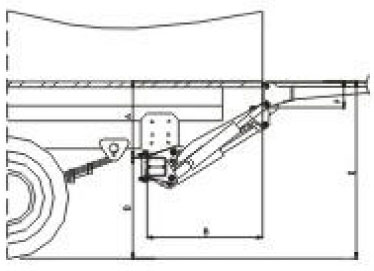

Installation Requirement


MODEL A
Min,Max.		 B
Min,Max.		 C
(Max)		 D
(Max)		 E
(Max)		 Chassis width
(Max)
INJ-15/130S 320,580 610,820 720 1300 200 880
INJ-15/155S 400,700 830,1040 850 1550 200 960

MODEL INJ-15/130S INJ-15/155S
Weight 630kg 630kg
Lifting capacity 1500kg 1500kg
Lifting height 1300mm 1550mm

* Conditions Apply
